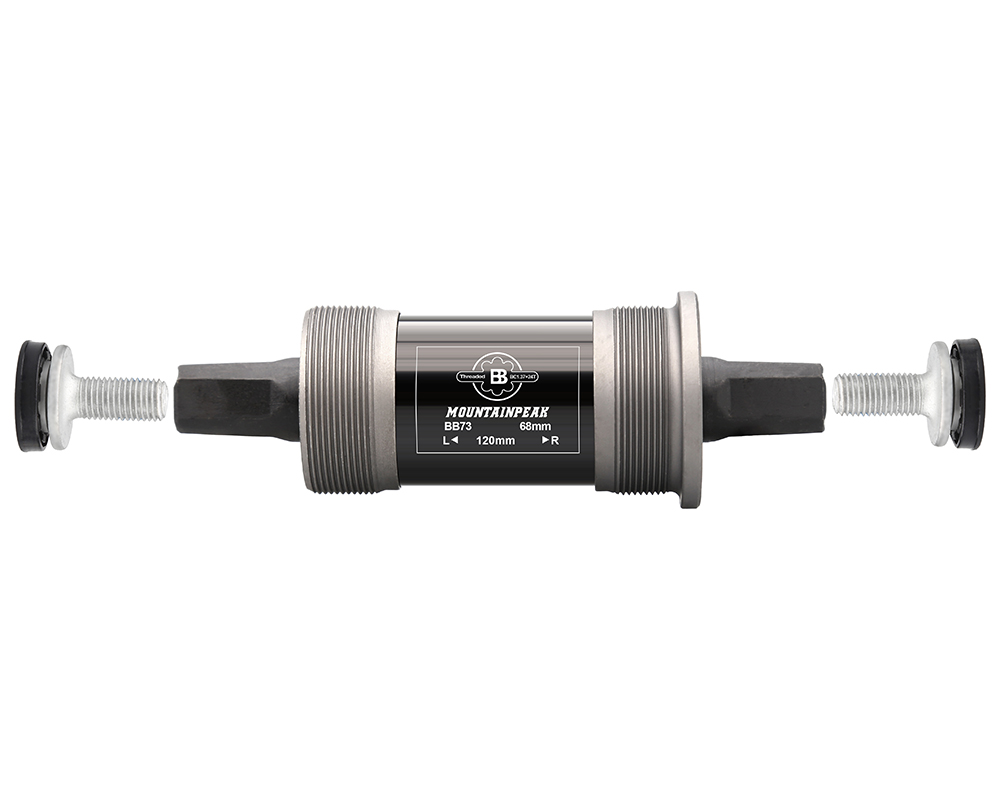

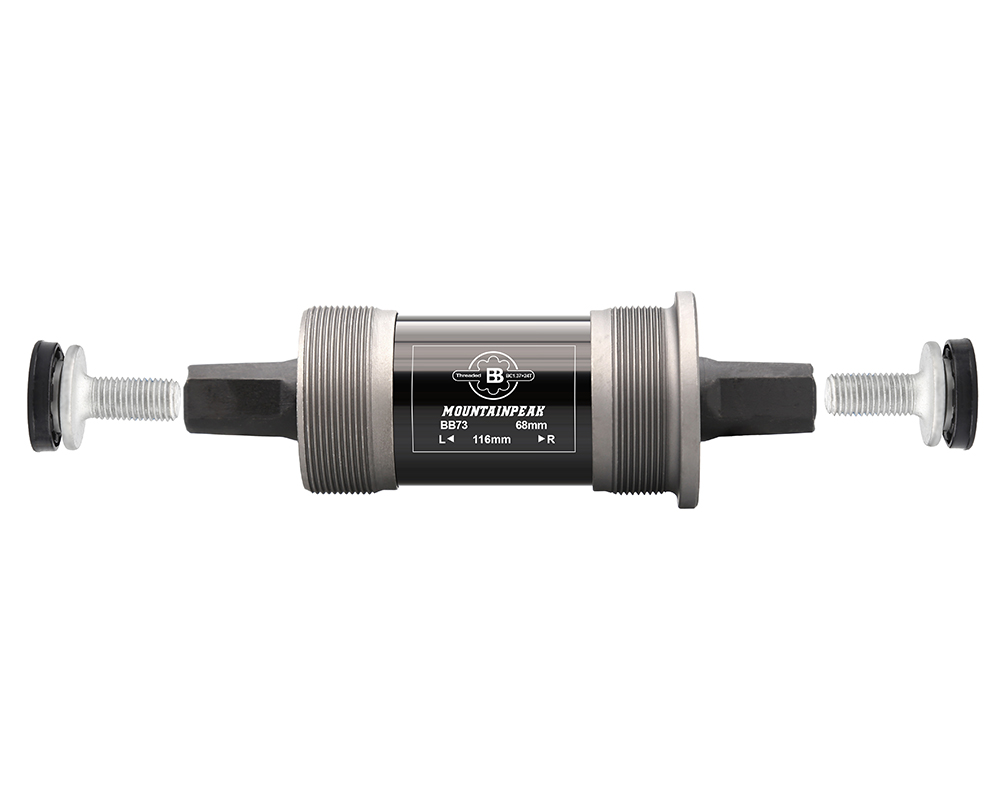

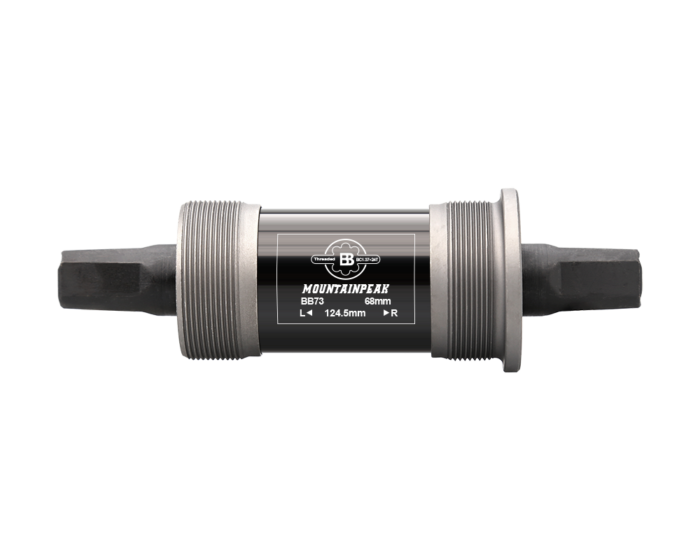

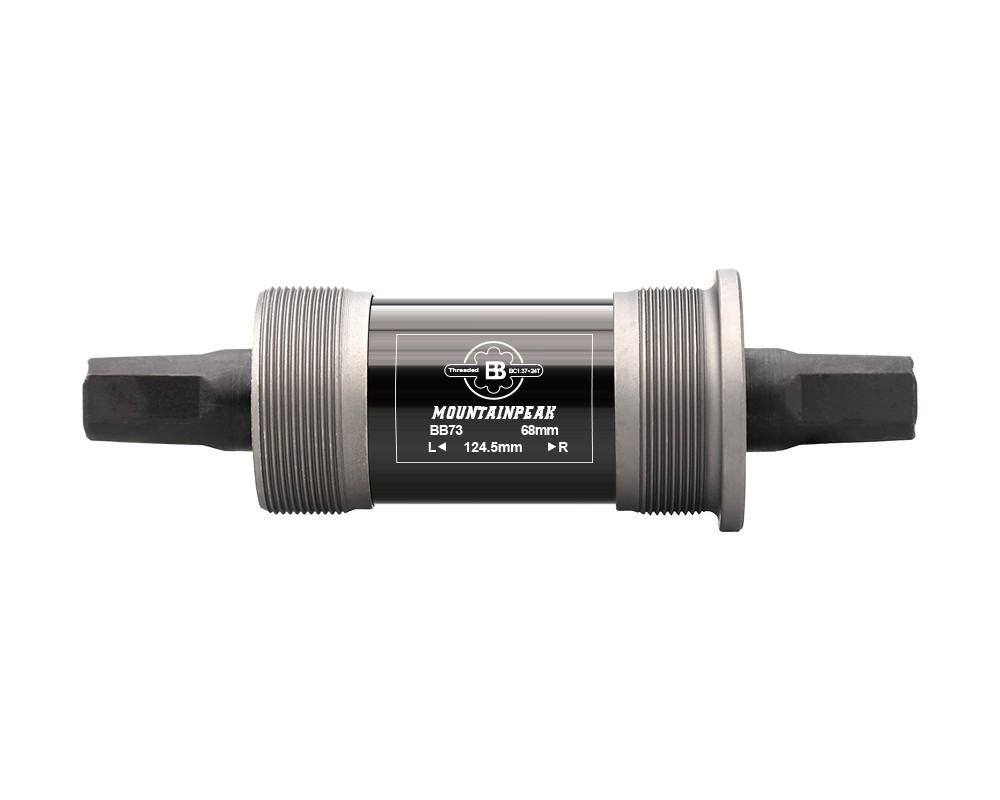

Bottom Bracket – English, 68 x 113/116/124/124.5mm, Square Taper JIS
These high performance square taper bottom brackets from MOUNTAINPEAK are designed to interface with English threaded frames.
- 68 mm wide shell
- 113/116/120/124.5 mm long
- Fits square-taper spindle cranksets
- Steel adjustable cups
- Includes 2 axle bolts
| Brand |
MountainPeak |
|---|---|
| Size |
68×113mm ,68×116mm ,68×120mm ,68×124.5mm |
Description
PRODUCT SPECIFICATIONS | |
| Model: | BB73 |
| Material | Steel |
| Bearing: | Steel Bearing |
| Thread: | BC1.37" × 24T |
| Shell： | 68mm |
| Discipline： | Road , MTB |
| Frame Dimension | BSA |
| Compatibility: | JIS , J-SQUARE |
Bottom Bracket Installation
Components
①Bottom Bracket Shell
②Left BB Cup
③Right BB Cup
Installation Steps
- Prepare the Bottom Bracket Shell
Clean the frame's bottom bracket shell thoroughly. Remove metal chips, dirt, and excess paint. - Grease Application
Apply a thin layer of grease to both the threads inside the shell and the external threads of the bottom bracket cups. - Install Left (Non-Drive Side) Cup
Hand-tighten the left cup clockwise into the shell by a few turns. - Install Right (Drive Side) Cup
Hand-tighten the right cup counter-clockwise into the shell. - Torque Tightening
Right cup: Use the bottom bracket tool and torque wrench to tighten to 40-50 Nm.
Left cup: Repeat the same torque for the left cup. - Post-Installation Check
Rotate the crankset to ensure smooth operation.
