Pedal Faster, Go Farther – Where the Road Meets Freedom!"

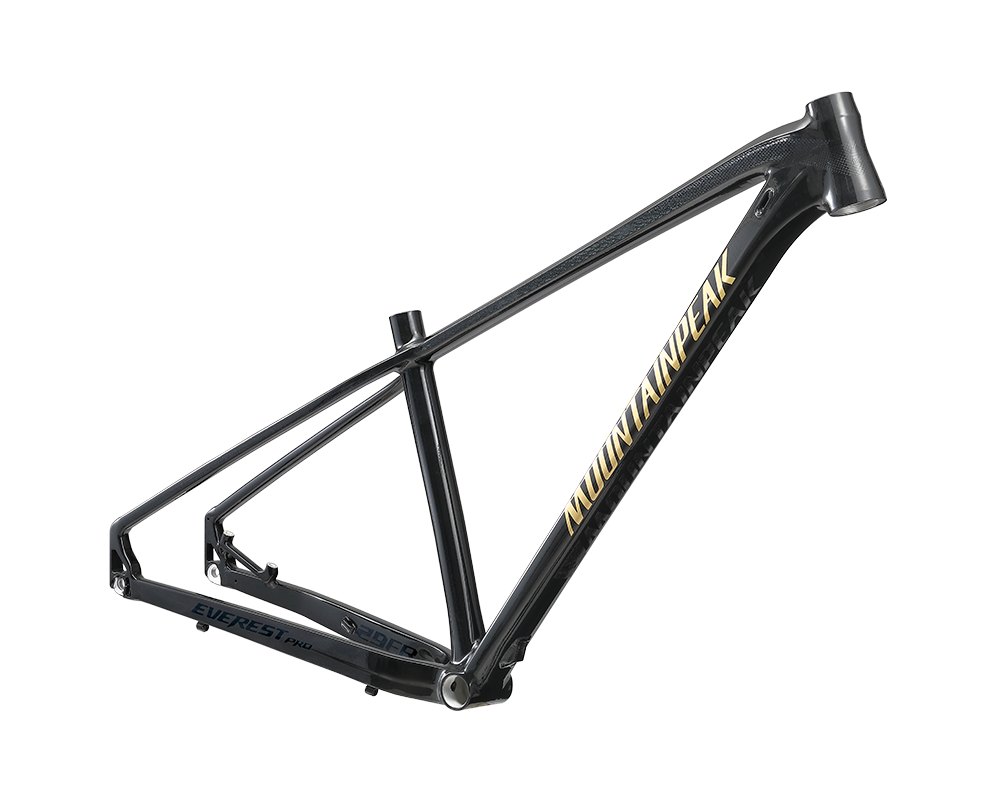

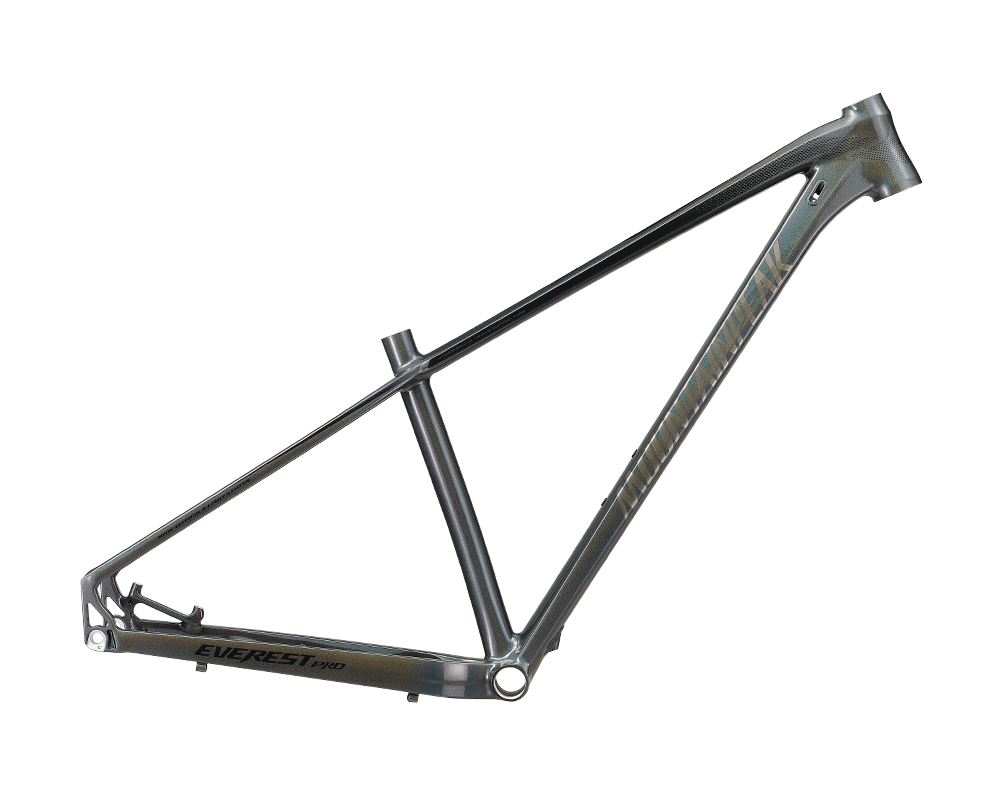

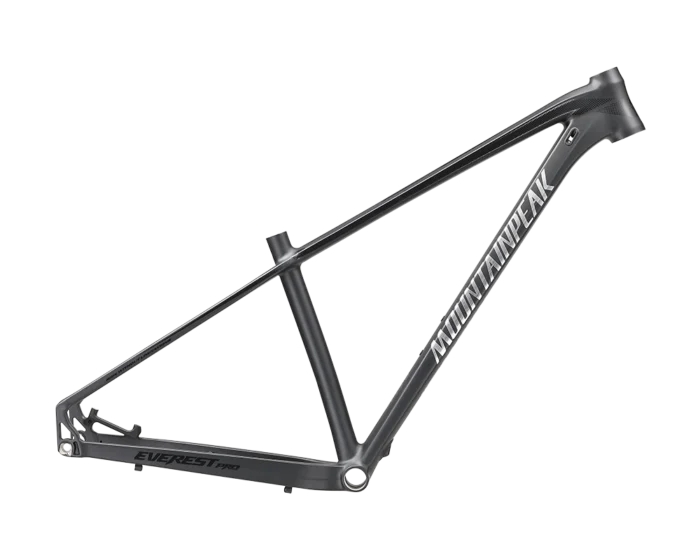

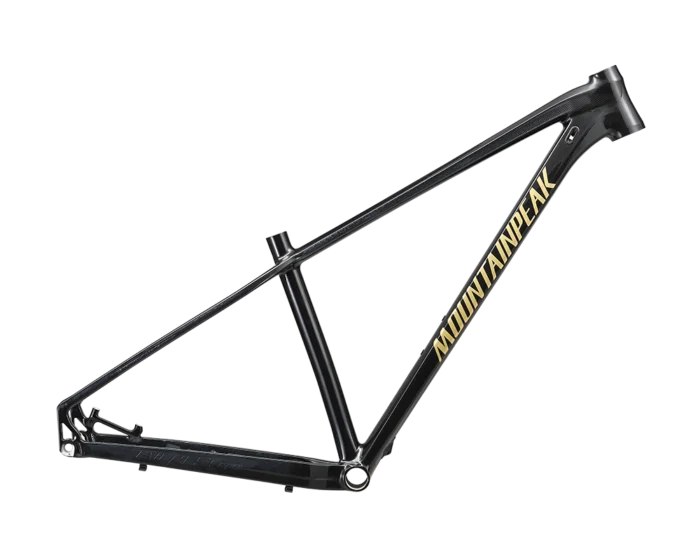

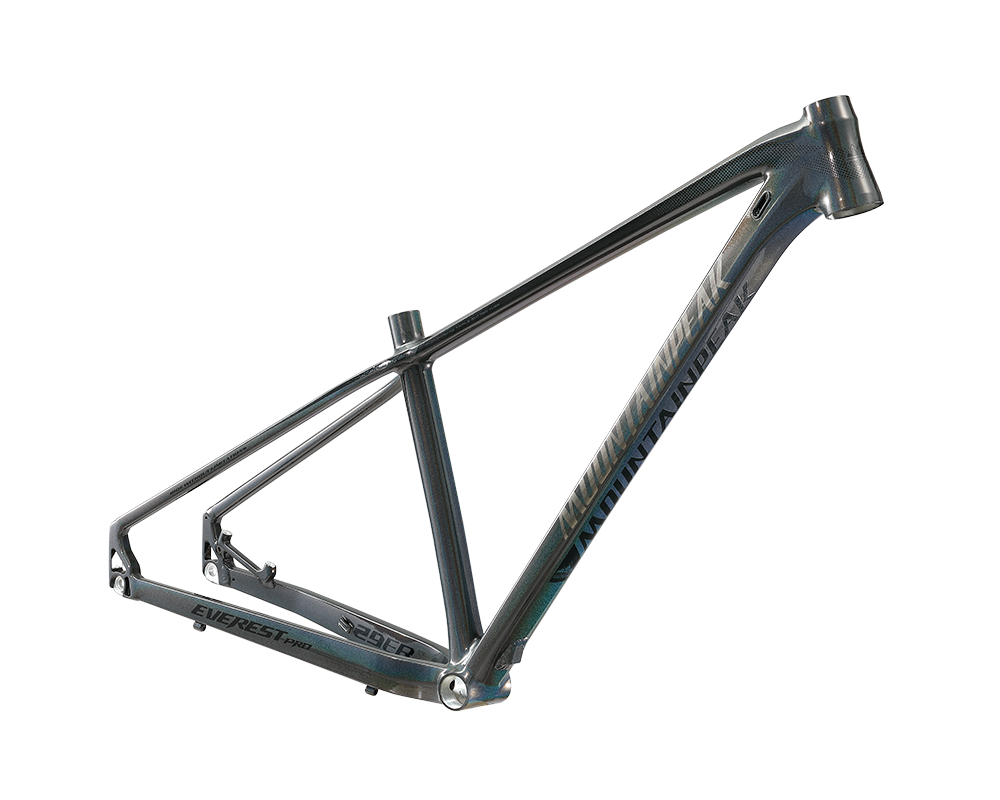

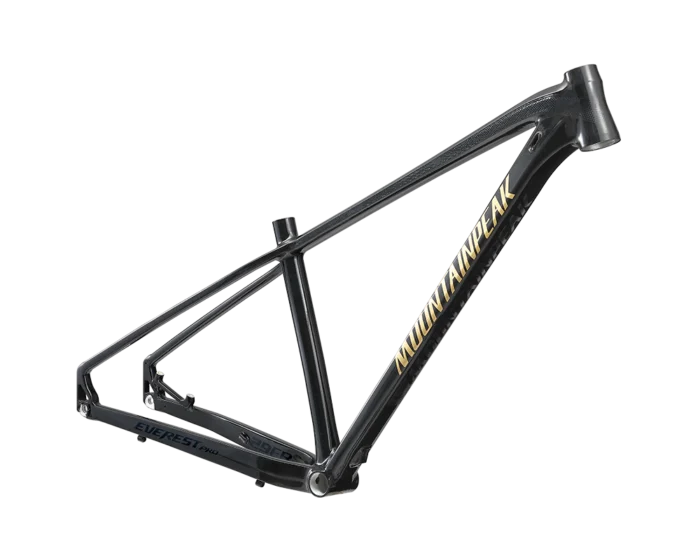

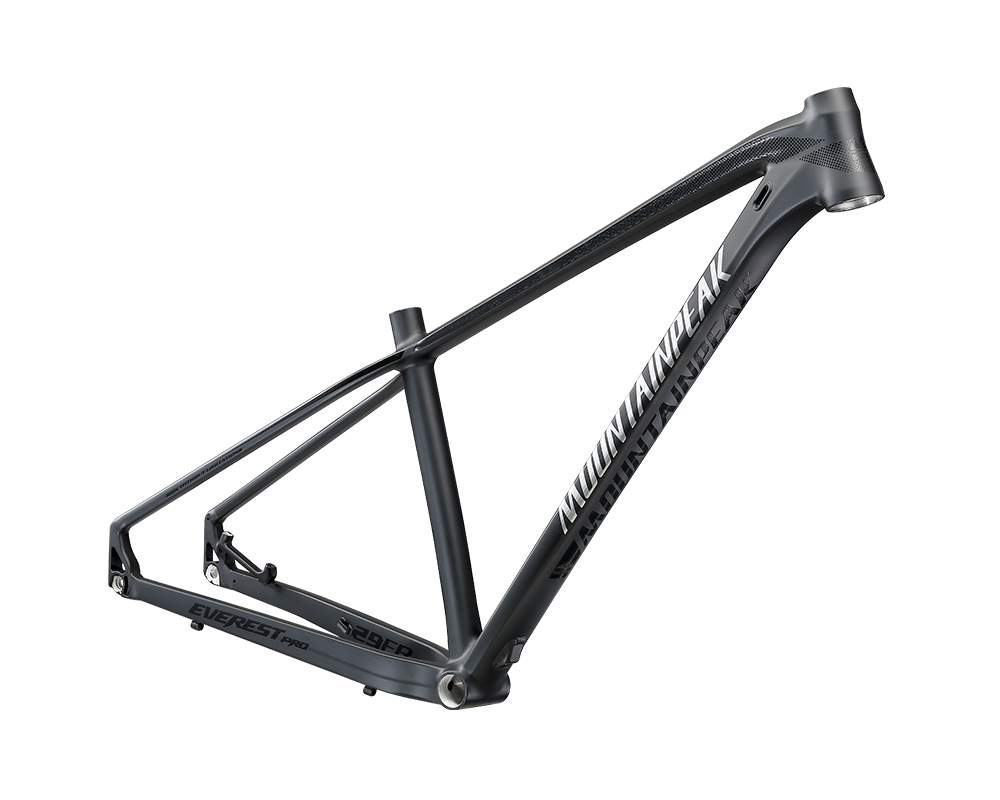

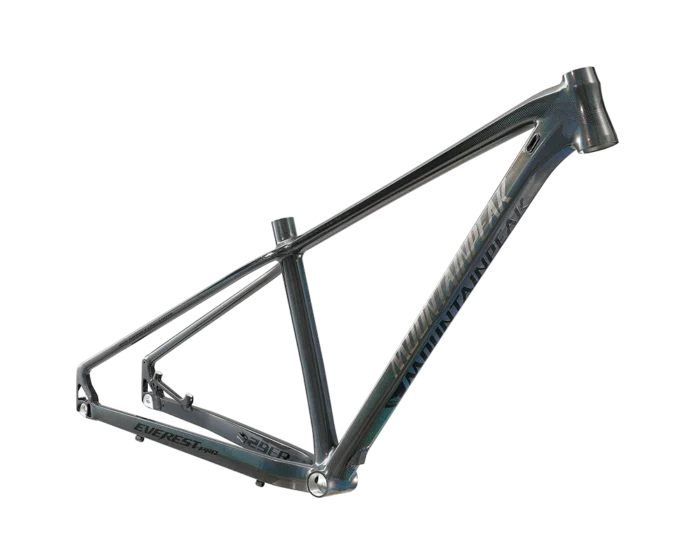

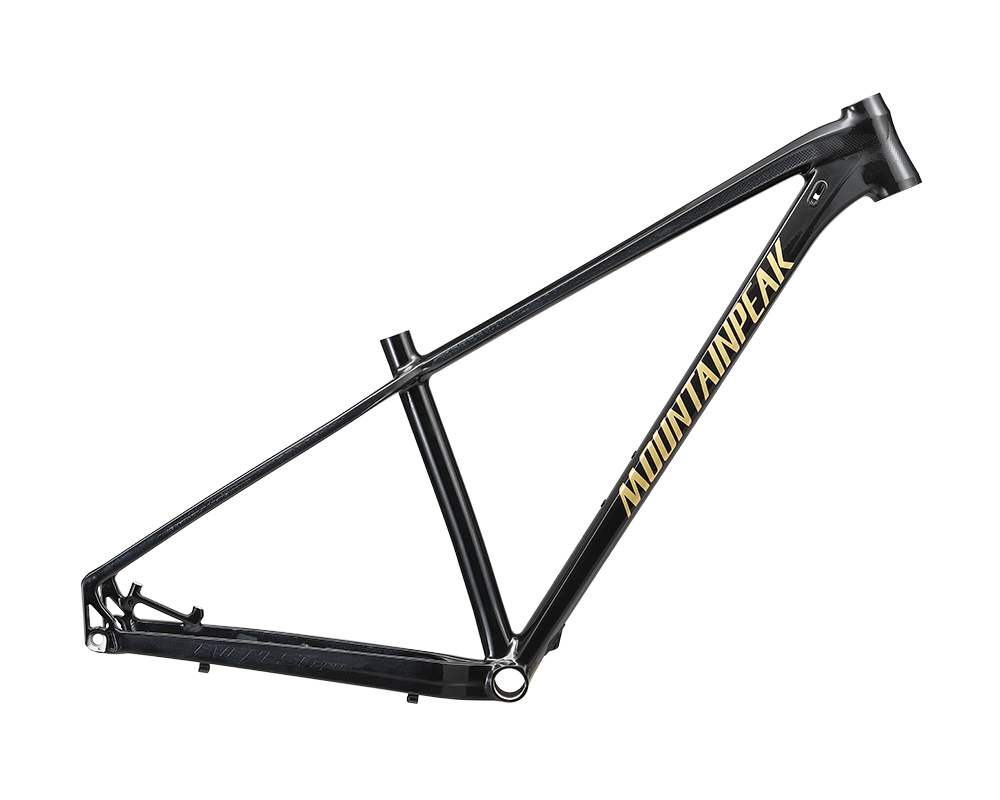

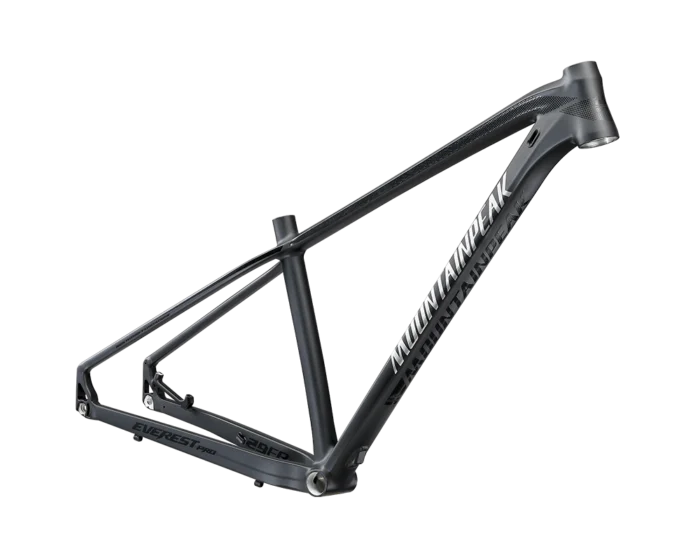

EVEREST PRO Ultralight X6 Aluminum Alloy Frame
EVEREST PRO features a lightweight aluminum frame weighing just 1.6 kg, crafted using hydraulic forming triple-butted tubes and smooth welding techniques. Its internal cable routing and classic color combinations give it a sleek and elegant appearance. Whether you seek riding comfort or a distinctive style, it is the ideal choice for you.
| Color |
GLOSSY GREY ,GLOSSY RAINBOW ,MATT BLACK |
|---|---|
| Size |
L ,M |
| Weight |
1.67KG |
Description
| FRAME SET | |
FRAME MTP EVEREST PRO frame X6 super light alloy,M12×142mm thru-axle,head tube:Tapered 42-52,threaded BB,disc |
| 27.5*16 | 27.5*17 | 29*16 | 29*17 | |
| (A) Seat Tube Length | 406mm | 432mm | 406mm | 432mm |
| (B) Seat Tube Angle | 73° | 73° | 73° | 73° |
| (C) Top Tube Length | 560mm | 575mm | 600mm | 610mm |
| (D) Head Tube Length | 110mm | 110mm | 110mm | 110mm |
| (E) Head Tube Angle | 70.5° | 71° | 70° | 70° |
| (G) Trail | 38mm | 38mm | 35mm | 35mm |
| (H) Wheelbase | 1038.8mm | 1048.3mm | 1098.4mm | 1108.4mm |
| (I) Chain Stay Length | 430mm | 430mm | 450mm | 450mm |
| (J) Bottom Bracket Drop | 50mm | 50mm | 60mm | 60mm |
| (K) Stack | 601mm | 603mm | 635.3mm | 635.3mm |
| (L) Reach | 376.3mm | 390.6mm | 405.8mm | 415.8mm |
