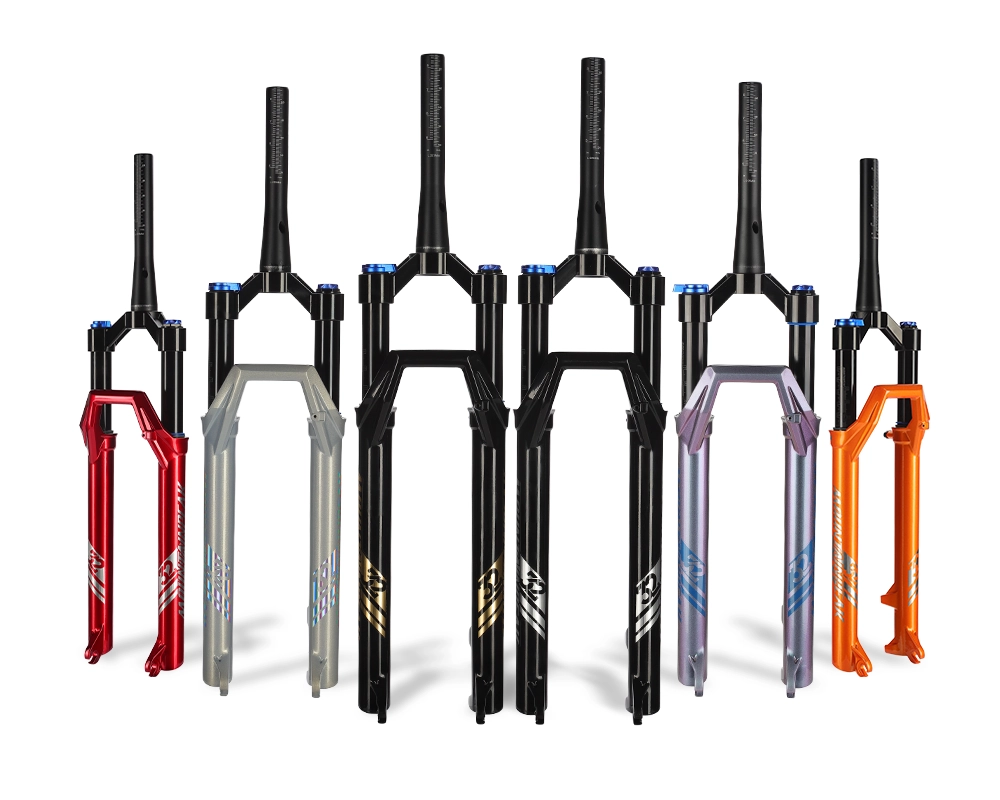

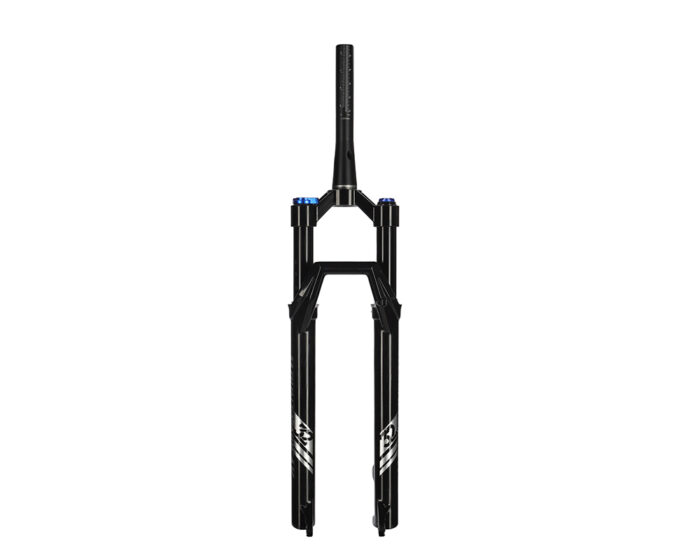

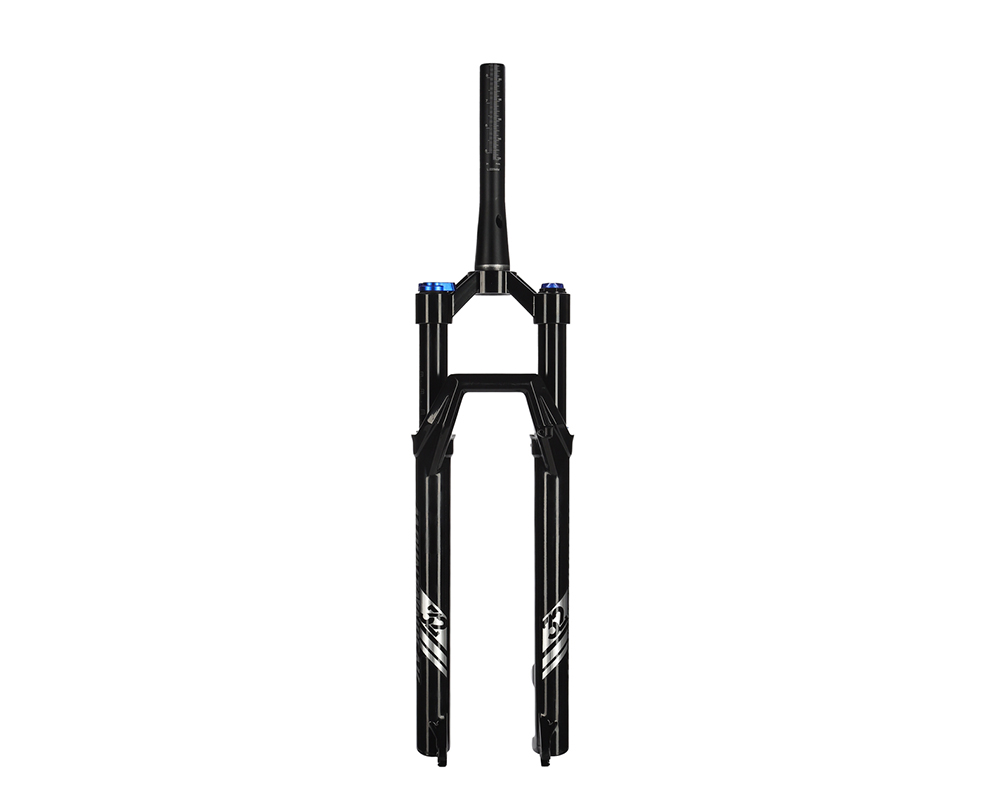

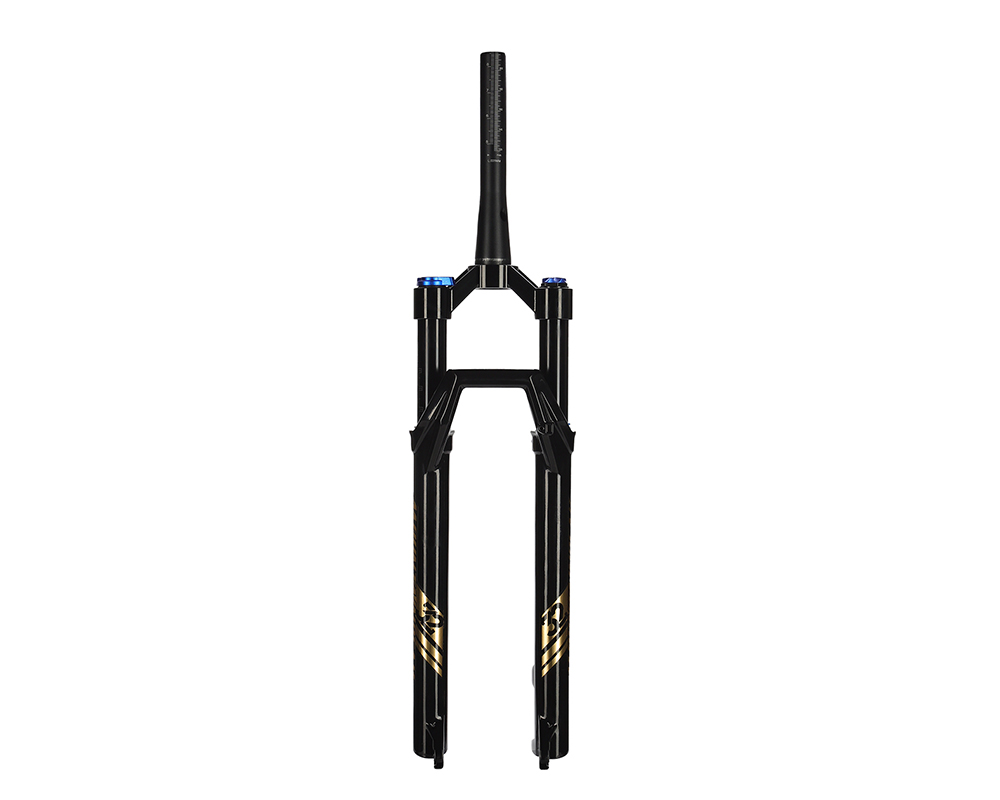

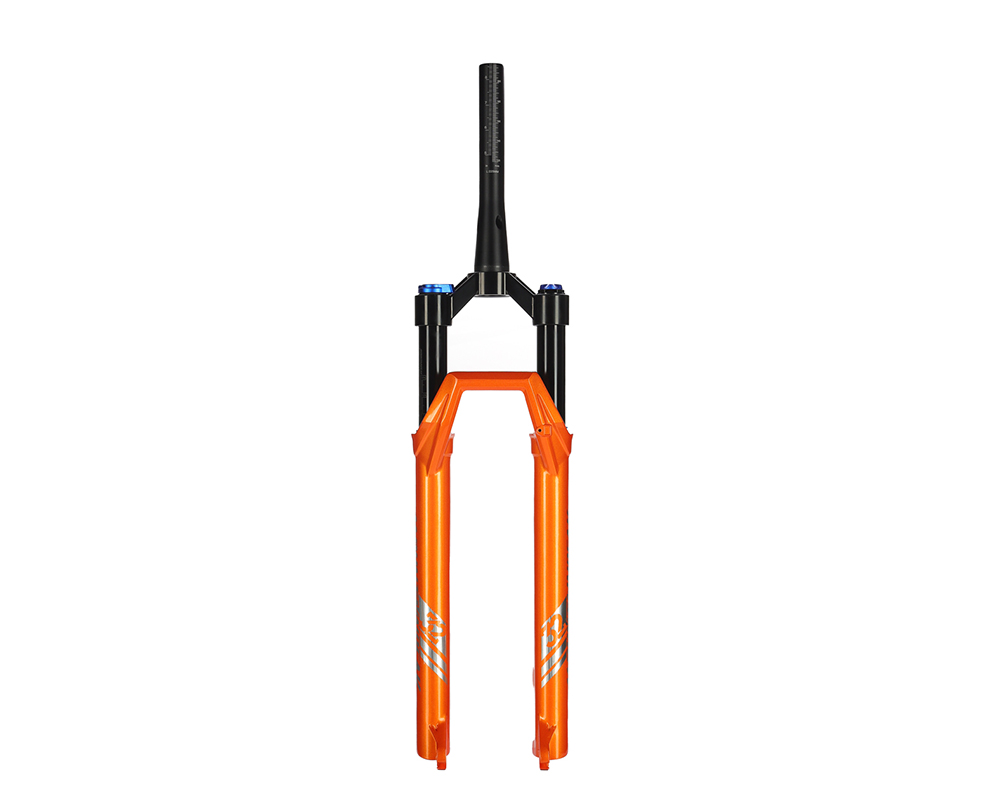

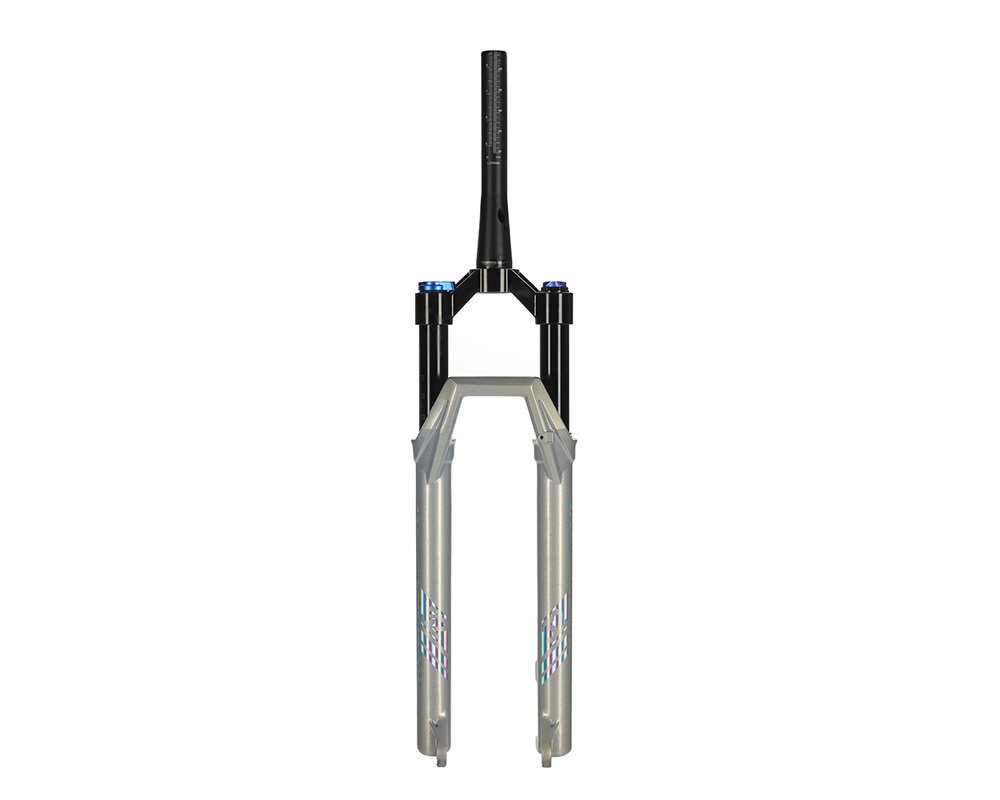

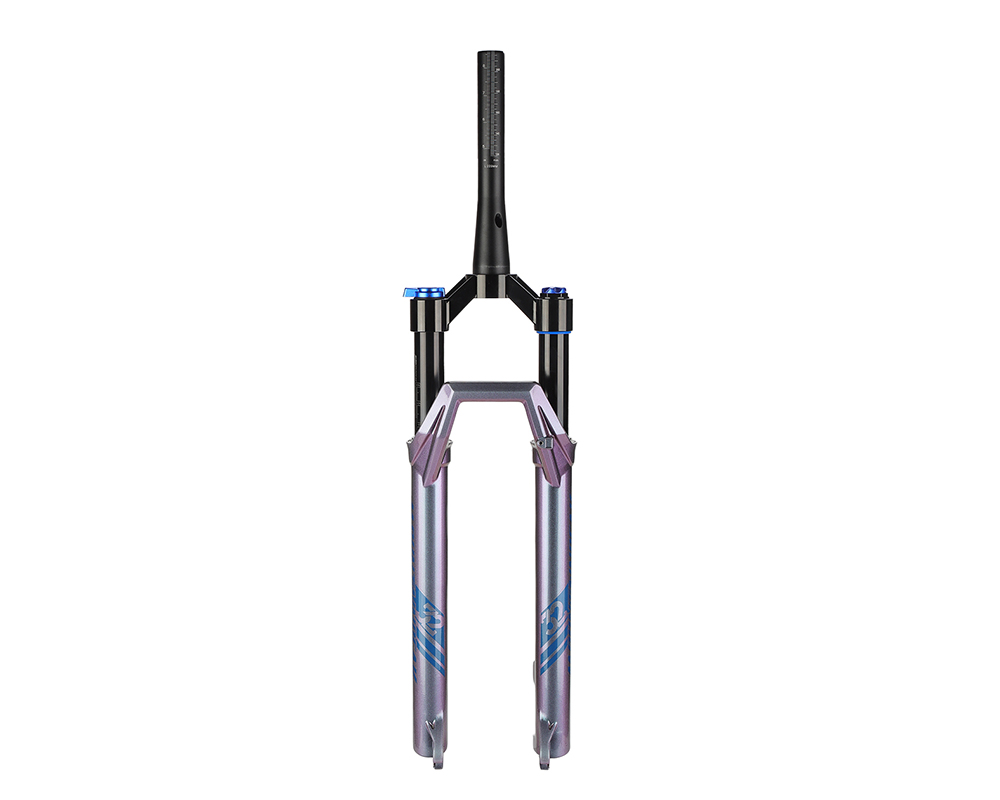

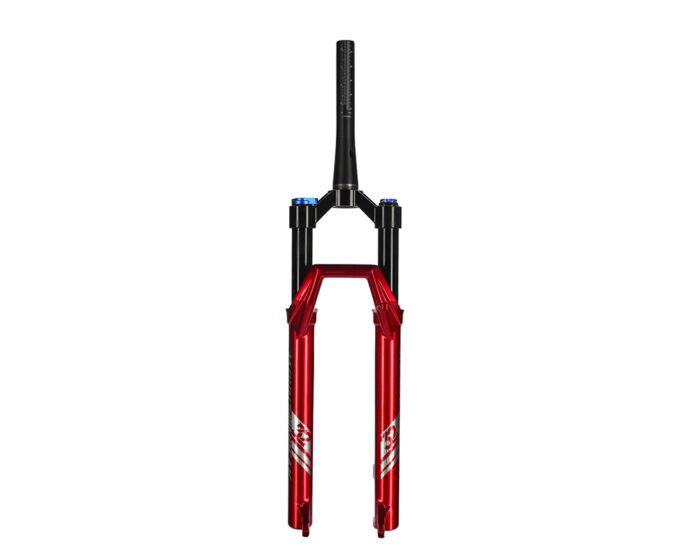

FORK MTP XM-1 Air/120/Tp/IRC/QR/Mudguard
Lightweight. Clean. Ready to Ride.
Built with magnesium alloy fork legs, a CNC-machined aluminum crown, and 32mm aluminum stanchions, this air suspension fork offers dependable front-end control with a clean, modern design. The cored steerer tube is precision-drilled to support internal cable routing, ensuring seamless integration with compatible frames.

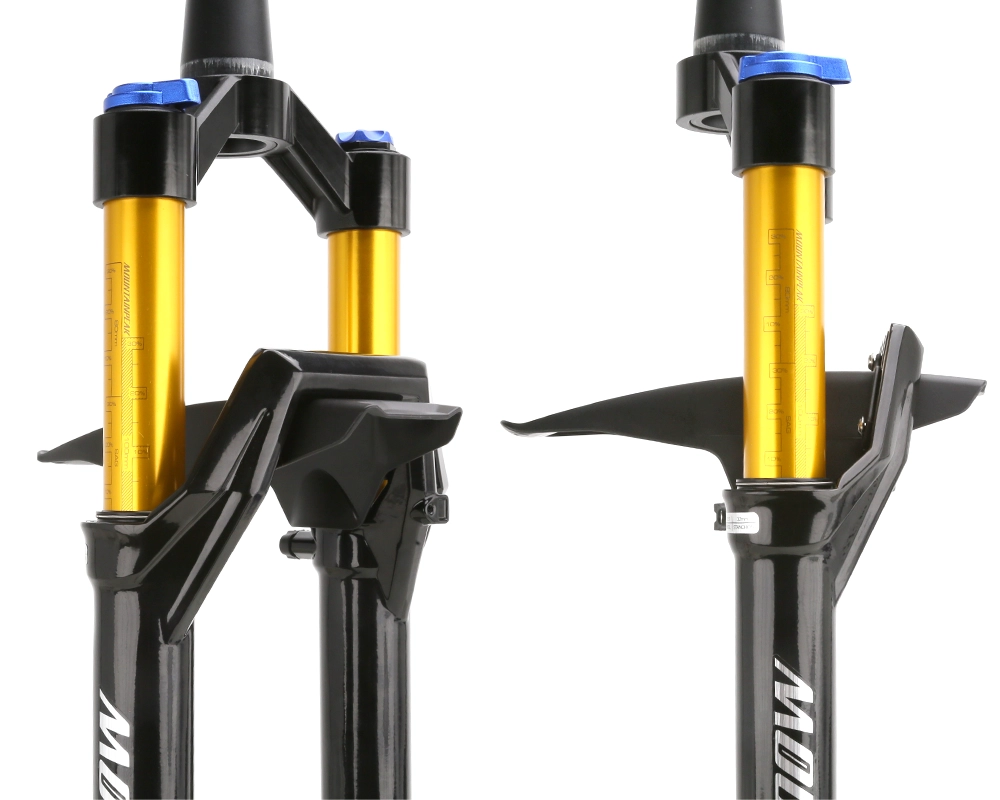

Equipped with a quick-release axle, single-side manual lockout, and a factory-installed custom mudguard — every detail is made for a smoother, smarter ride.
Category: Fork
Description

SPECIFICATIONS
| Wheel Size | 27.5 / 29 |
| Travel | 120 mm |
| Suspension Type | Air |
| Stanchion Diameter | 32 mm |
| Material | Magnesium |
| Crown | 3D Forging Al-6061-T6 |
| Steerer Tube | 1.5" - 1-1/8" |
| Steerer Length | 225 mm |
| Cable Routing | Fully Internal Cable |
| Brake Mount | Post Mount |
| Axle Type | QR 9 × 100 mm |
| Mudguard | Dedicated Mudguard Included |
